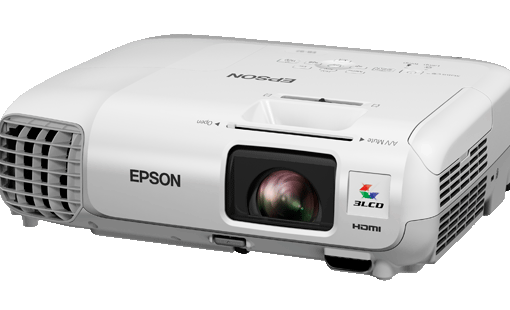

EPSON ESSENTIAL PROJECTORS FOR EFFECTIVE MEETINGS EB-97H
$6,580.00
EPSON ESSENTIAL PROJECTORS FOR EFFECTIVE MEETINGS EB-97H
$6,580.00
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| Specifications of Main Parts | |
| LCD: | |
| Size | 0.55″ without MLA (D8) |
| Native Resolution | XGA |
| Projection Lens: | |
| Type | Optical Zoom (Manual) / Focus (Manual) |
| F-Number | 1.58 – 1.72 |
| Focal Length | 16.9 – 20.28mm |
| Zoom Ratio | 1 – 1.2 |
| Throw Ratio | 1.48 – 1.77 (Wide – Tele) |
| Lamp | |
| Type | 200W UHE |
| Life*¹ (Normal/Eco) | 5,000 hours / 10,000 hours |
| Screen Size (Projected Distance) | |
| Zoom: Wide | 30” – 300” [0.89 – 9.12 m] |
| Zoom: Tele | 30” – 300” [1.07 – 10.95 m] |
| Brightness*² | |
| Colour Light Output | 2,700lm |
| White Light Output (Normal) | 2,700lm |
| Contrast Ratio | |
| Auto Iris: On | 10,000:1 |
| Video Quality | 3D Y/C Separation, Noise Reduction, Motion Compensated Interlace-Progressive Conversion (2-2,3-2 Film Detection) |
| Colour Mode | Dynamic, Presentation, Theatre, sRGB, Blackboard |
| Internal Speaker(s) | |
| Sound Output | 16W Monaural |
| Keystone Correction | |
| Vertical / Horizontal | ±30° / ±30° (Slide Bar) |
| Auto Keystone Correction | Yes (Vertical) |
| Connectivity | |
| Analog Input | |
| D-Sub 15 pin | 2 (Blue) |
| Composite | RCA x 1 (Yellow) |
| S-Video | Mini DIN x 1 |
| Digital Input | |
| HDMI | 2 ( 1 x MHL) |
| Audio Input | |
| RCA (White/Red) | 1 |
| Stereo Mini Jack | 2 |
| Audio Output | |
| Stereo Mini Jack | 1 |
| USB Input | |
| USB Type A | 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update) |
| USB Type B | 1 (for USB Display, Mouse, K/B, Control, Firmware Update) |
| Mic I/O | |
| Stereo Mini Jack | 1 |
| Control I/O | |
| RS-232C | D-Sub 9pin x 1 |
| Network | |
| Wired LAN | 1 |
| Wireless LAN | Optional (ELPAP07) |
| Wireless Specifications | |
| Supported Speed For Each Mode*3 | IEEE 802.11b: 11 Mbps, IEEE 802.11g: 54 Mbps, IEEE 802.11n: 130 Mbps |
| Wireless LAN Security | WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES) |
| Operating Temperature | 5 – 35 °C <41 – 95 °F> ( 20% – 80% Humidity, No Condensation) |
| Operating Altitude | 0 – 3,000 m <0 – 9,843 ft> ( over 1,500m / 4,921ft: with high altitude mode) |
| Direct Power On / Off | Yes |
| Start-Up Period | 5 seconds, Warm-up Period: 30 seconds |
| Cool Down Period | Instant Off |
| Power Supply Voltage | 100 – 240 V AC ±10%, 50/60 Hz |
| Power Consumption (220 – 240V) | |
| Lamp On (Normal / Eco) | 287W / 215W |
| Stand By | 0.26W |
| Dimension Excluding Feet (D x W x H) |
244 x 297 x 87 mm |
| Weight | 2.7kg |
| Fan Noise (Normal / Eco) | 37dB / 29dB |
