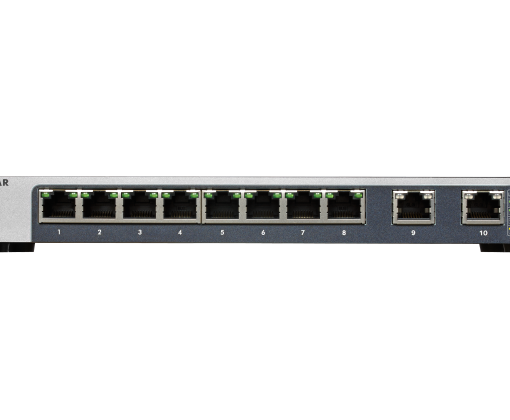

GS110EMX – 8-port Gigabit Plus managed switch w/ 10G/Multi-Gigabit
GS110EMX – 8-port Gigabit Plus managed switch w/ 10G/Multi-Gigabit
Please contact 2685 2608 for Pricing
100M/1G/2.5G/5G/10G RJ-45 copper ports
- 2
10M/100M/1G Copper ports
- 8
Datasheet (PDF)
Form Factor
- Desktop/Wall-Mount/Rackmount
Packet buffer memory
- 128KB
Bandwidth
- 56Gbps
MAC Address database size
- 16K
VLAN (# supported)
- 64
Number of LAGs & number of members
- 5 LAGs with max 9 members in each LAG
Supported multicast groups
- 128
Max number of source ports allowed (many to one port mirroring)
- 9
Bandwidth
- 56Gbps
Fan(s)
- 0 ( Fanless)
IEEE 802.3az (Energy Efficient Ethernet)
- Yes
Max power consumption (Watts)
- 13.2W
LEDs
- Power, Speed, Link/Activity
Acoustic noise level @ 25° C (dBA)
- 0
Operating temperature
- 0° to 40° C
Electromagnetic compliance (A or B)
- B
Dimensions (W x D x H)
- 236 x 102 x 27 mm (9.29 x 4.02 x 1.06 in)
Weight
- 0.75 kg (1.63 lbs)
