| Processor |
- Intel Core i7-6600U Processor (4M Cache, 2.6GHz), Turbo Boost 2.0 (3.4GHz), vPro
|
| Operating system |
- Windows 7 Professional with Windows 10 Pro Lic
|
| Display |
- 23.8″ Full HD 1080p (1920×1080), IPS panel, wide viewing angle (+/- 89°), 250 nits, 16:9 aspect ratio, 1000:1 contrast ratio, anti-glare, work as standalone monitor via DisplayPort™ (DP in / out combo)
|
| Light sensor |
|
| Multi-touch |
|
| Memory (1 DIMM only) |
- 16GB DDR4-2133 SODIMM RAM
|
| Graphics |
|
| Graphic Dongle (optional) |
- DisplayPort to DVI-D (single link) Adapter
- DisplayPort to HDMI Adapter
- DisplayPort to VGA Adapter
|
| Camera |
- 2.0-megapixel camera, fixed focus, supports 1080p, with dual array digital microphone, LED indicator, physical switch on/off, Skype for Business certified
|
| Hard Drive |
|
| Optical drive |
|
| Chassis dimensions (W x D x H) |
- Without stand: 570 x 33 x 360 mm
- With Orchid Tilt Stand: 570 x 240 x 451 mm
|
| Weight |
- Without stand: 4 kg max
- With Orchid Tilt Stand: 5 kg max
|
| Stand |

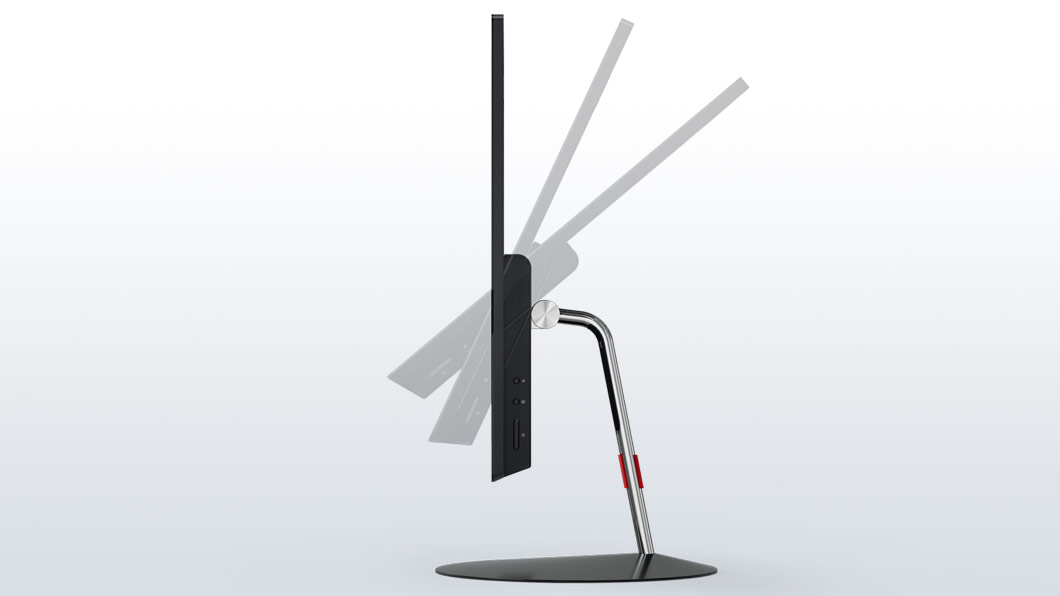

- Orchid Tilt Stand, tilt Angle: -5° ~ 45°
|
| VESA Mount |
- Optional VESA mount kit (100mm)
|
| Case colour |
|
| Case material |
|
| Tool-less |
- Convenient side-accessible ports and buttons
- Tool-less removable/replacement of memory
|
| Power supply |
- 90W, autosensing, 88% PSU
|
| Keyboard |
- Lenovo Slim USB Keyboard (USB connector), black
|
| Mouse |
- Enhanced Optical USB Mouse, black, Lenovo logo
|
| Wireless |
- Intel Dual Band Wireless-AC 8260, 802.11ac, 2×2, Wi-Fi + Bluetooth® 4.1, no vPro
|
| Ethernet |
- Gigabit Ethernet, Intel Ethernet Connection I219-LM (Jacksonville), Wake on LAN®
|
| Chipset |
- Intel System-on-Chip (SoC) platform
|
| Manageability |
- Intel Active Management Technology 11.0 (Intel AMT 11.0) on some models; Intel vPro technology on some models (require choosing a vPro-support Wi-Fi adapter to enable vPro function through wireless connection)
|
| Security chip |
- Trusted Platform Module (TPM 1.2-compliant)
|
| Physical security |
- Security slot (in rear for attachment of optional cable), Smart USB protection, Chassis Intrusion Switch (optional), Cable Lock (optional), Camera privacy lock
|

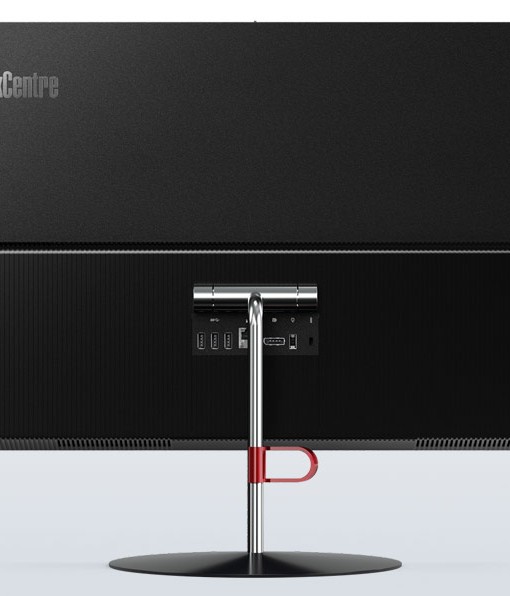

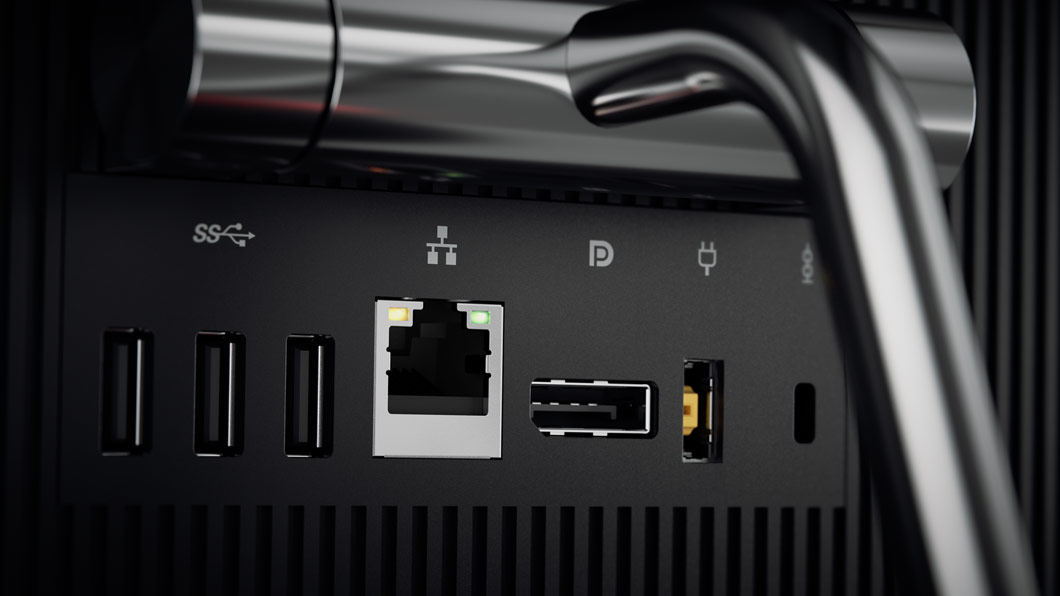

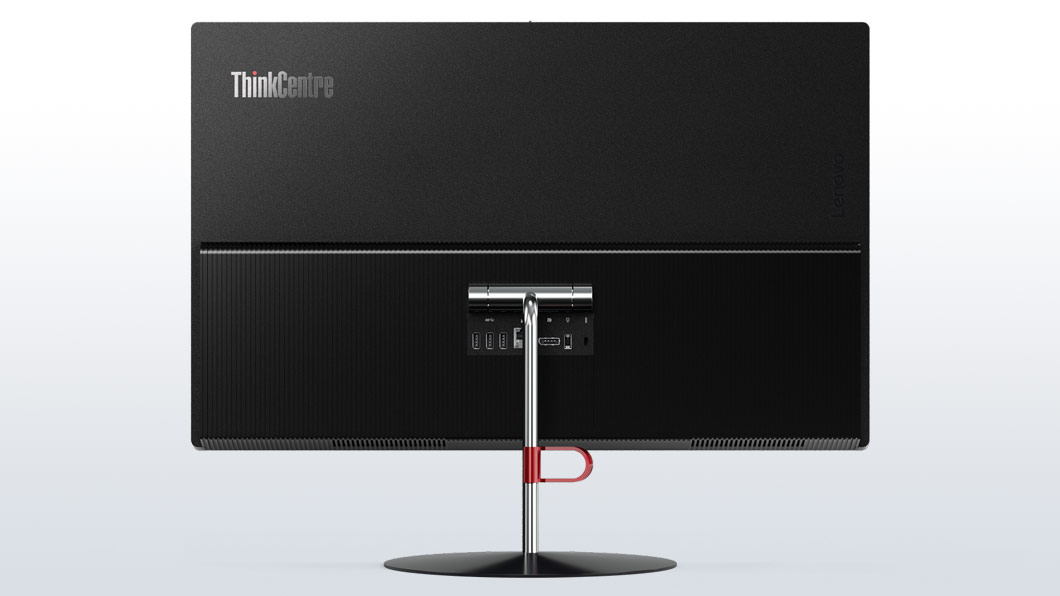

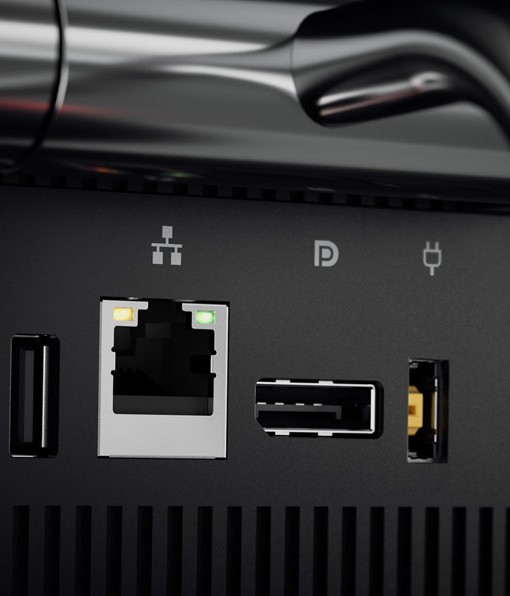

| Rear ports |
- 3 x USB 3.0
- DisplayPort in/out combo port
- Ethernet (RJ45)
|

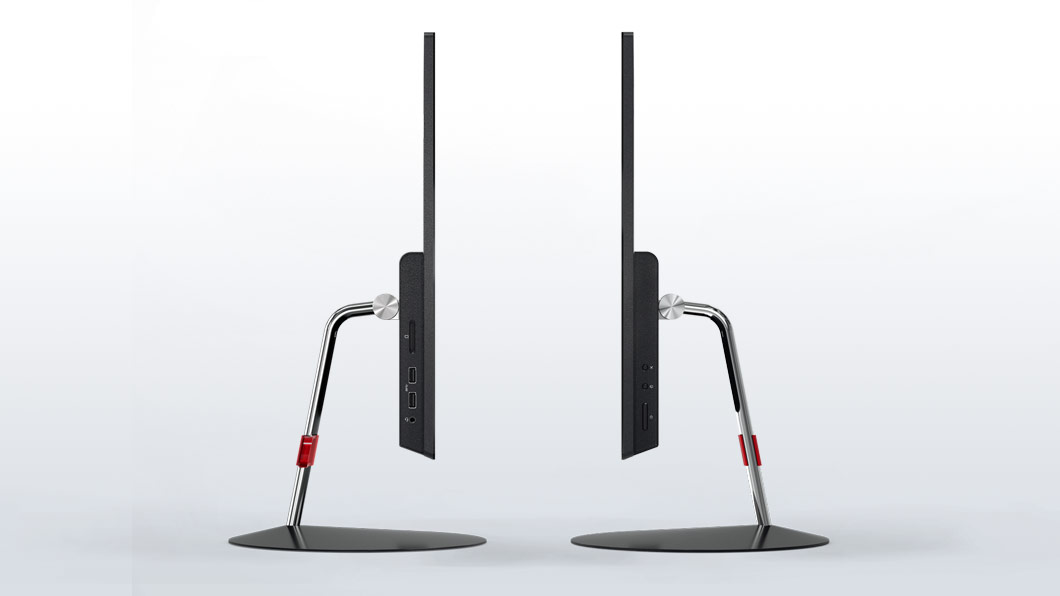

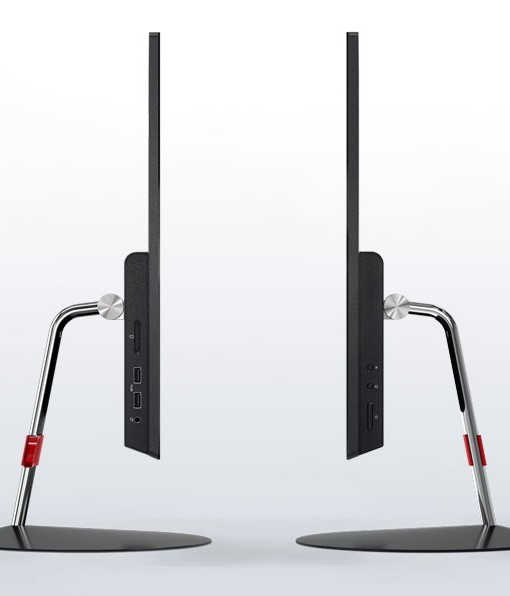

| Side ports |
- 2 x USB 3.0 (1 x Always On and fast charge)
- Headphone / microphone combo jack (3.5mm)
- 9-in-1 media card reader (optional)
|
