Multi-Gigabit Ethernet Smart Managed Pro Switches
$4,200.00
Multi-Gigabit Ethernet Smart Managed Pro Switches
$4,200.00
Product Number
MS510TXPP
Product Thumbnail
Model Description

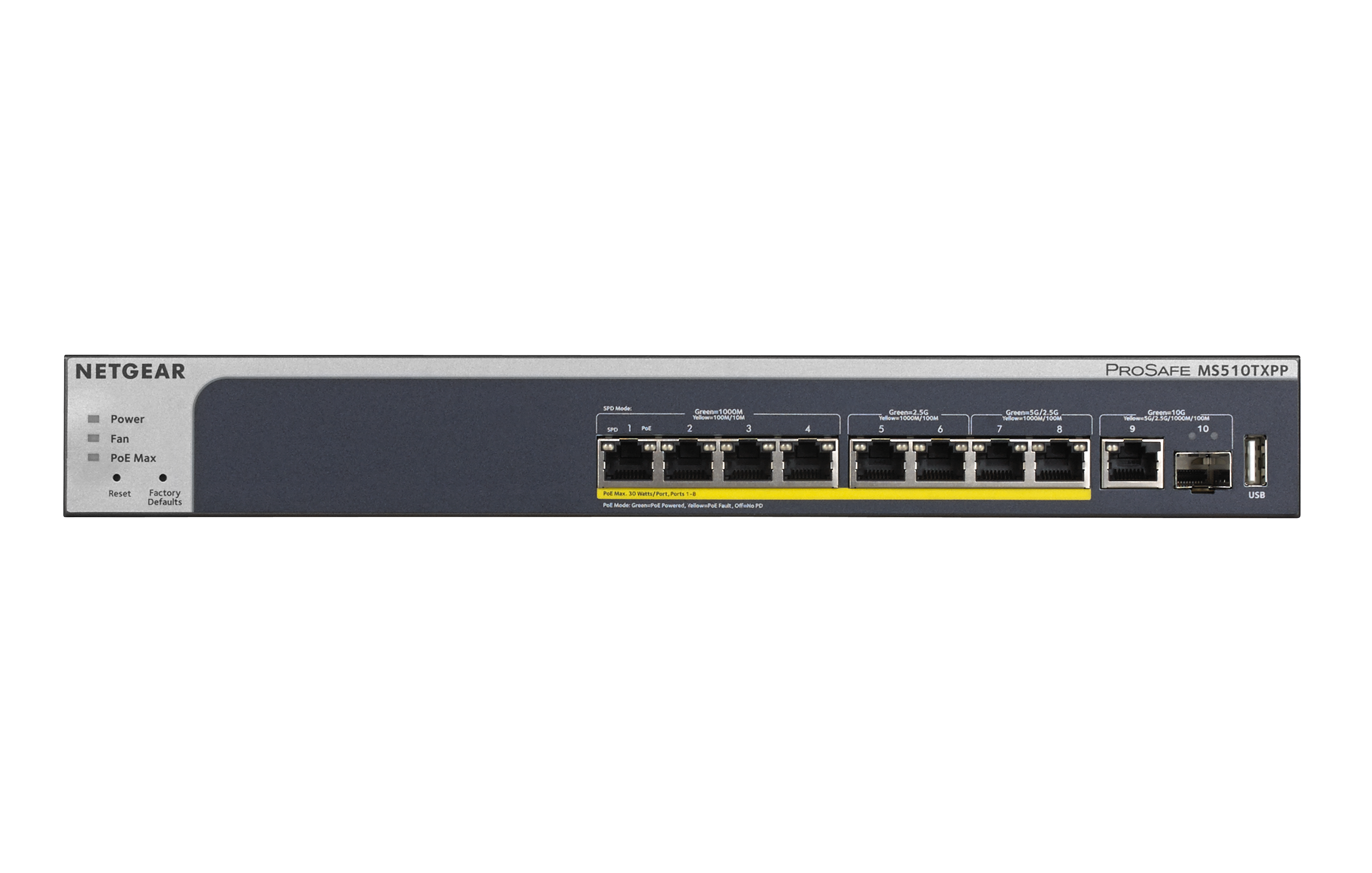

- 8-Port PoE+ Multi-Gigabit Smart Managed Pro Switch with 10G Copper/Fiber Uplinks (MS510TXPP)
Datasheet (PDF)
Gigabit ports
- 4 (10M/100M/1G)
2.5-Gigabit ports
- 2 (100M/1G/2.5G)
5-Gigabit ports
- 2 (100M/1G/2.5G/5G)
10-Gigabit copper ports
- 1 (100M/1G/2.5G/5G/10GBASE-T)
10-Gigabit fiber SFP+ ports
- 1 (1G/10GBASE-X SFP+)
Switching fabric
- 78 Gbps line rate
Number of PoE ports
- 8
PoE+ (802.3at)
- 8
Total PoE Power budget (Watts)
- 180W
Max MAC entries
- 16K
Buffer size
- 3MB
VLAN (Number Supported)
- 256
VLAN routing
- Yes
Dynamic VLAN assignment
- Yes
MLD Snooping
- Yes
Static route
- Yes (32 IPv4 + 32 IPv6)
Host ARP table
- Yes (512)
EEE
- Yes
DoS Prevention
- Yes
Internal/External
- Internal 100-240VAC 50-60Hz
Max consumption (Watts)
- 234.31W
FAN
- 1
Acoustic Noise Level @25C (dBA)
- 28.8
Operating Temperature
- 0° to 50° C
MTBF at 25° C
- 376,434 hrs
Weight (kg)
- 1.9 kg
Dimensions (WxDxH) mm
- 328 x 169 x 43 mm
