Insight Managed 8-Port Gigabit Ethernet PoE Smart Cloud Desktop Switch w/2 SFP Fiber Ports (62W)

$1,890.00

Insight Managed 8-Port Gigabit Ethernet PoE Smart Cloud Desktop Switch w/2 SFP Fiber Ports (62W)

$1,890.00

SKU: GC110P. Category: .
Product Number

GC110P

Product Thumbnail

GET SUPPORT

 BUY NOW
Model Description
  • Insight Managed 8-Port Gigabit Ethernet PoE Smart Cloud Desktop Switch w/2 SFP Fiber Ports (62W)
Gigabit copper ports
  • 8
Gigabit SFP ports
  • 2 (dedicated)
Datasheet (PDF)
Number of PoE/PoE+ ports
  • 8 PoE (802.3af)
Total PoE power budget (watts)
  • 62W
Bandwidth (full-duplex)
  • 20 Gbps
Buffer size (dynamically shared across ports in use)
  • 1.5 MB
MAC address database size (48-bit MAC addresses)
  • 16K
VLAN (number supported)
  • 256
VLAN routing
  • Yes
Dynamic VLAN assignment
  • Yes
MLD Snooping
  • Yes
Static routes
  • 32 (IPv4) / 31 (IPv6)
Link Aggregation / Port Trunking
  • LACP (802.3ad Dynamic Link Aggregation) & Manual Static LAG
Number of LAGs & number of members
  • 5 LAGS with max 8 members in each LAG
Number of priority queues
  • 8
Supported multicast groups
  • 512
DoS prevention
  • Yes
Loop detection/prevention
  • Yes
Jumbo frame support
  • Up to 9,216 packets
EEE (IEEE 802.3az)
  • Yes
Power supply
  • External: Input 48V/1.67A (power cord localized to country of sale)
Max power consumption (Watts)
  • 10.3 W (no PoE)
  • 74.4 W (with PoE max)
Fan(s)
  • 0 (fanless)
Acoustic noise level @ 25°C (dBA)
  • N/A
Operating temperature
  • 0° to 45°C (32° to 113°F)
MTBF (@ 25°C)
  • 2,976,994 hours (340 years)
Electromagnetic compliance (A or B)
  • Class A
Dimensions (W x D x H)
  • 245 x 123 x 33 mm (9.6 x 4.8 x 1.3 in)
Weight
  • 0.77 kg (1.70 lb)

Reviews

There are no reviews yet.

Add a review

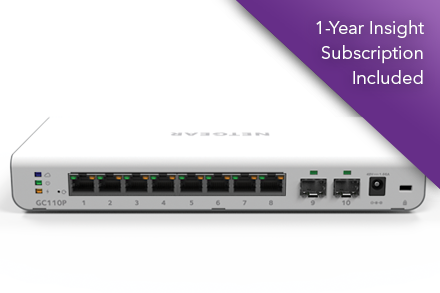

GC110P_Top_Rear_Final_Shadows
