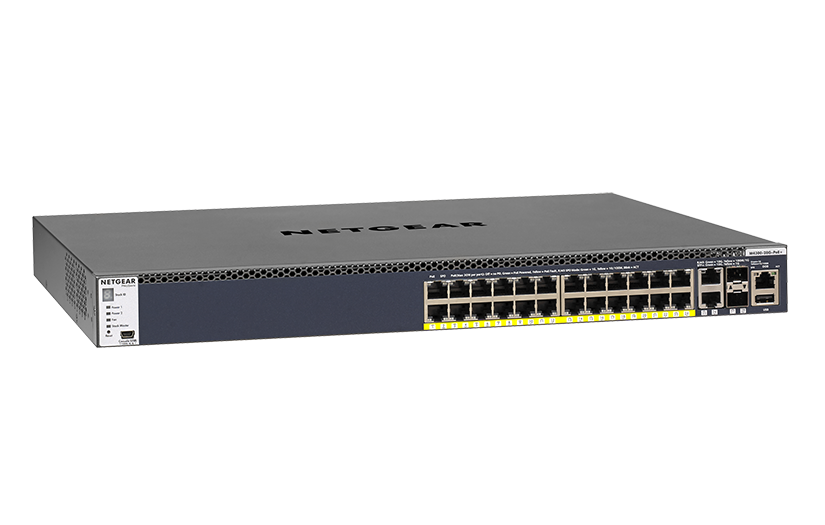

M4300-28G-PoE+ (GSM4328PA) – 24x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)

$13,000.00

M4300-28G-PoE+ (GSM4328PA) – 24x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)

$13,000.00

SKU: GSM4328PA. Category: .
Product Number

M4300-28G-PoE+ 550W PSU

Product Thumbnail
Model Description
  • 24x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)
Datasheet (PDF)
Datasheet (Excel)
Ordering Number
  • GSM4328PA
Acoustics
  • 39.8dB @ 25°C (77°F)
Power Consumption (Max)
  • 797 Watts
1G RJ45 Ports
  • 24 x 10/100/1000
10G RJ45 Ports
  • 2 x 10GBASE-T (Fast Ethernet, 1G and 10G speeds)
10G Fiber SFP+ Ports
  • 2 x SFP+ (1G and 10G speeds)
Power over Ethernet
  • 24 x PoE+ 30W
PoE Budget (Watts)
  • 480W PoE Budget with 1 PSU @ 110V / 220V AC input
  • 480W PoE Budget with 2 PSUs in redundant RPS mode @ 110V / 220V AC input
  • 720W PoE Budget with 2 PSUs in shared EPS mode @ 110V / 220V AC input
Feature Set
  • Layer 3 (static, policy-based and RIP OSPF VRRP PIM dynamic routing)
Management Ports
  • 1G Ethernet service port for out-of-band management (OOB, RJ45)
  • RS232 straight-through serial RJ45 for local management console
  • Mini-USB port for local management console
  • USB port for local storage, logs, configuration or image files
Form Factor
  • Full width with dual, redundant modular PSUs for business continuity
